Fire Hydrant Valves
Landing Valves : Single Outlet ISI Marked
- Size : Inlet 75 / 80mm with 63mm size one no. female outlet
- Leaded Tin Bronze of Is:318 and stainless steel - IS: 3444
- Hydrostatic (Body Test) : Tested at 21 Kgf/ cm2.
- Water Tightness (Seat Test) : Tested at Kgf/cm2
- Flow Test : 900 Liter at Kgf/cm2
Technical Specifications :
Material :
Performance Test :
Landing Valves : Double Outlet ISI Marked (Type 'B')
- Size : Inlet 100mm with 63mm size two nos. female outlet
- Leaded Tin Bronze of IS : 318 and stainless steel -IS : 3444
- Hydrostatic (Body Test) : Tested at 21 Kgf / cm2.
- Water Tightness (Seat Test) : Tested at 14 Kgf/cm2
- Flow Test : 1800 Liter at 7 Kgf/cm2
Technical Specifications :
Material :
Performance Test :

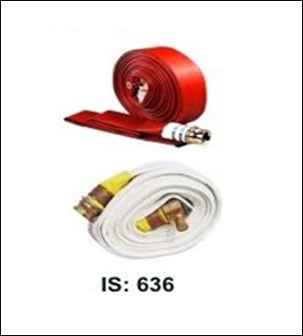

Fire Hose Pipes
Technical Specifications :
| Inner Diameter | 63 mm |
| Mass per meter | 500 gms max |
| Burst Pressure | 36 bar |
| Proof Pressure | 22 bar |
| Kink Pressure | 22 bar |
| Working Pressure | 18 bar |
Thermoplastic Hoses for Hose Reel
Technical Specifications :
| General | Nominal Bore | 20.0 ± 0.75 mm |
| Type I | Working Pressure | 6 Kgf / cm2 |
| Proof Pressure | 12 Kgf / cm2 | |
| Brushing Pressure | 19 Kgf / cm2 | |
| Type II | Working Pressure | 10 Kgf / cm2 |
| Proof Pressure | 20 Kgf / cm2 | |
| Brushing Pressure | 30 Kgf / cm2 |
First Aid Hose Reel
- Size : Inlet 20mm (3/4 " BSP Thread Size) Hose Reel Tubing Hydraulic Rubber Hose Conf to IS:444
- Type : Swinging 180 0 Wall Mounting
- Hydrostatic Test : Tested at 21 Kgf/cm2 Range & Water Flow rate test at 7 Kgf/cm2
- A) Discharge : 24 Liter per Minute
- B) Range (Jet Length) : 6mtr (min)
Technical Specifications :
Performance Test :
Fire Water Monitors
Stand Post Type Water Cum Foam / Water Monitor as per IS : 8442
- Size : 63mm " BSP Thread Size) Hose Reel Tubing Hydraulic Rubber Hose Conf to IS:444
- Seamless Steel Tubes
- Hydrostatic Test (Body Test) : Tested at 21 kgf/cm2 Discharge at working pressure 7 Kgf/cm2 : 1700 Lit/min
- Range : Vertical - 21 meter | Horizontal - 53 meter
- Rotation : Vertical : 1250 min. (80 0 Upward and 45 0 downward) Horizontal : 360 0 in either direction
Technical Specifications :
Material :
Performance Test :

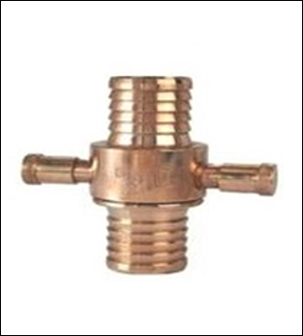

Hose Delivery Couplings
- Size : 63mm
- Leaded Tin Bronze of IS:318 and stainless steel IS:3444
- Hydrostatic Test (Body Test) : Tested at 21 Kgf/cm2
- 70mm, 52mm & 38mm
Technical Specifications :
Material :
Performance Test :
Other Range :

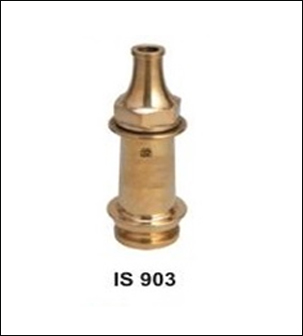

Branch Pipe and Nozzles
- Size : 63mm
- Leaded Tin Bronze of IS:318 and stainless steel IS:3444
- Hydrostatic Test (Body Test) : Tested at 21 Kgf/cm2
- 52mm & 38mm
Technical Specifications :
Material :
Performance Test :
Other Range :

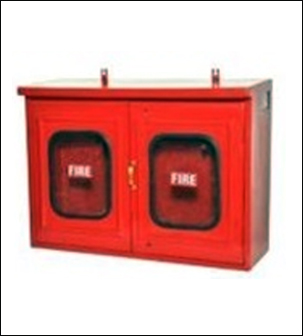

Fire Hose Boxes
- Mild Steel, Stainless Steel and FRP
- Single Door / Double Door type with Locking Arrangement, Front Glass and Key
Material :
Type :
4/3/2 Way Suction Collection Head
- Consist of 4/3/2 nos. 63mm Size (GM) Male Instantaneous coupling as per IS: 903 with NRV
